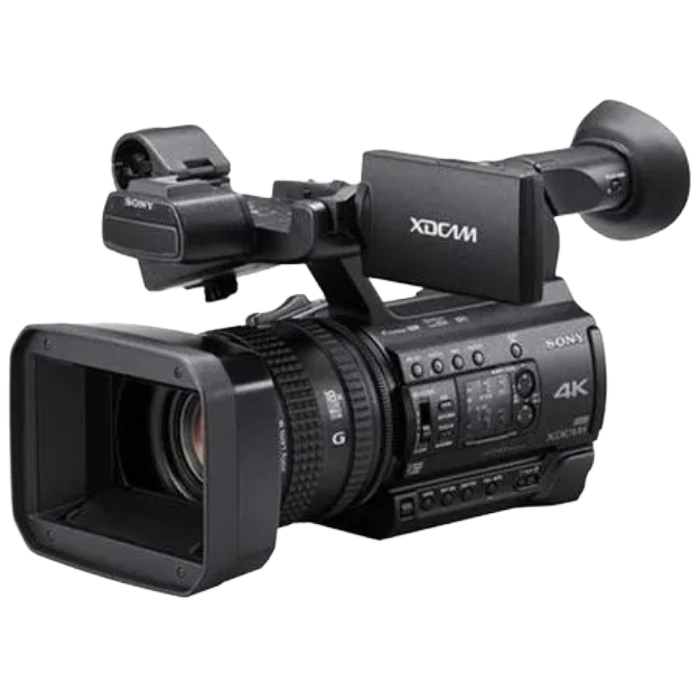

The PXW-Z100 is a handheld 4K camcorder built for professional video production. It captures true 4K internally with a compact, ENG-style body.

Sensor: It has a 1/2.3-inch Exmor R CMOS sensor with 8.8 MP effective resolution.

Lens: Features a fixed 20x optical zoom lens (f/1.6–3.4), equivalent to 29.5–590 mm.

Video Recording + Slow Motion: Records 4K (4096×2160) at 50p or 60p and UHD at 60p in XAVC format. Shoots slow motion at up to 120 fps in HD via post-processing.

Base ISO: Base ISO is approximately 500.

ISO Range: Native sensitivity is limited but adjustable using gain up to +33 dB.

Stabilization: Has digital image stabilization. No optical or in-body stabilization.

Storage: Uses dual XQD card slots for high-bitrate 4K recording.

Audio Capabilities: Includes two XLR inputs and a built-in stereo mic. Supports professional audio controls and manual levels.

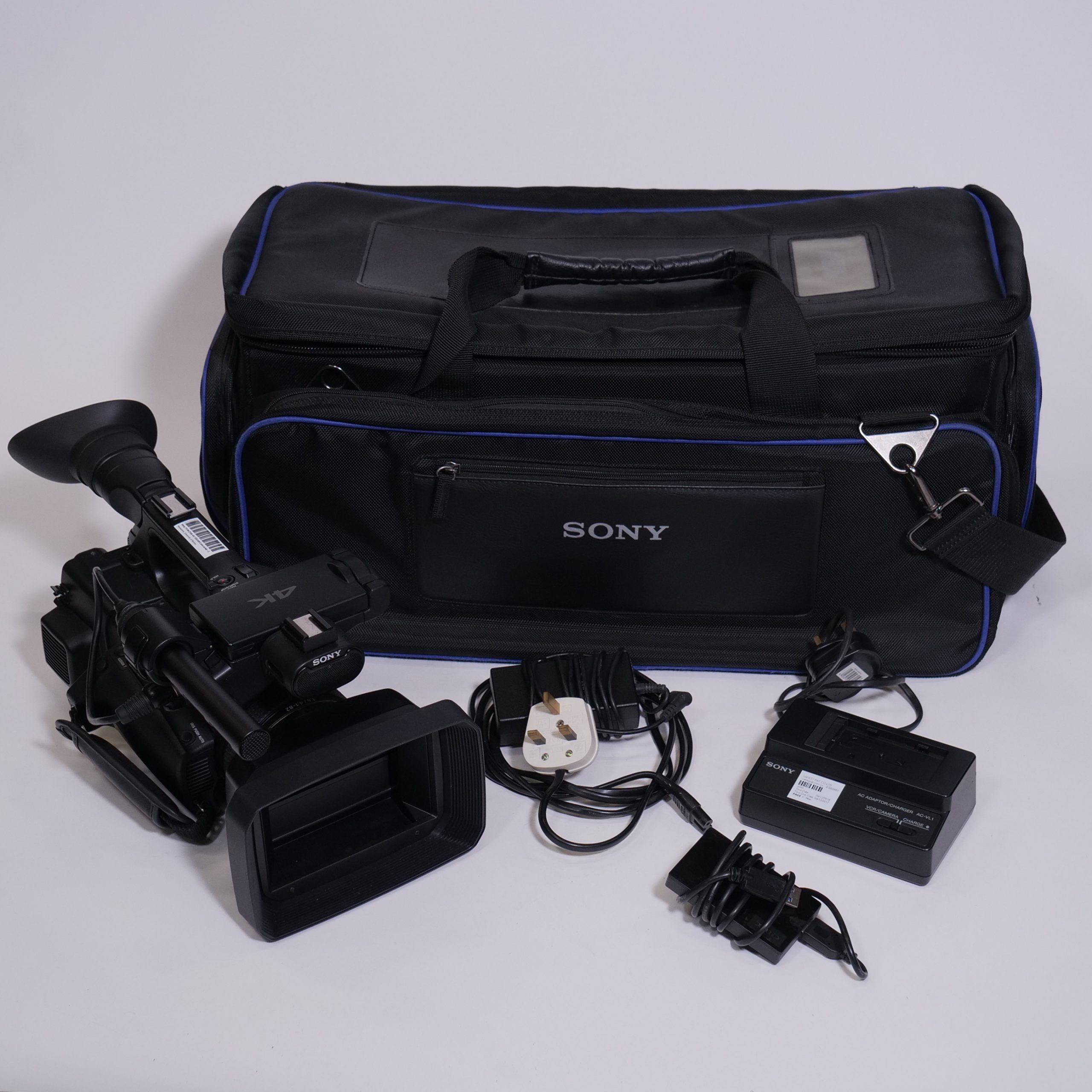

EQUIPMENT KIT

1x SONY PXW-Z100 4K HANDHELD XDCAM CAMCORDER

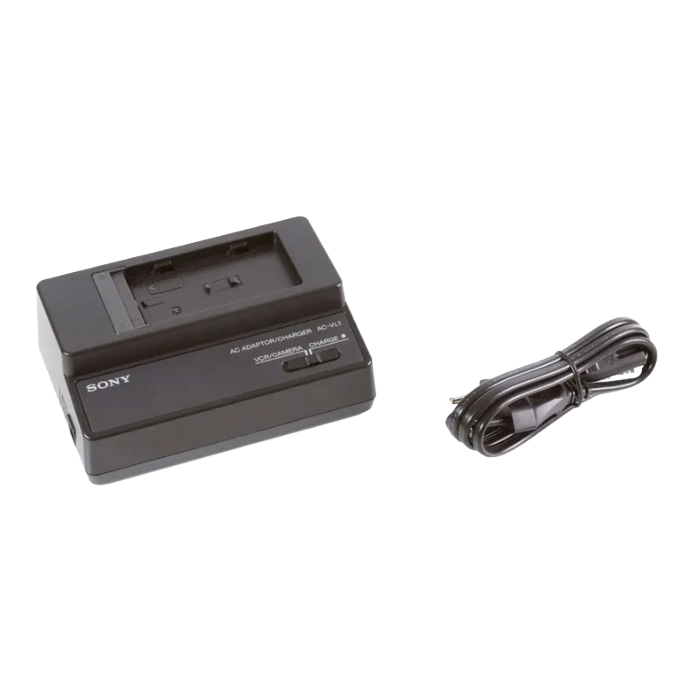

1x SONY AC-VL1 AC ADAPTER / BATTERY CHARGER

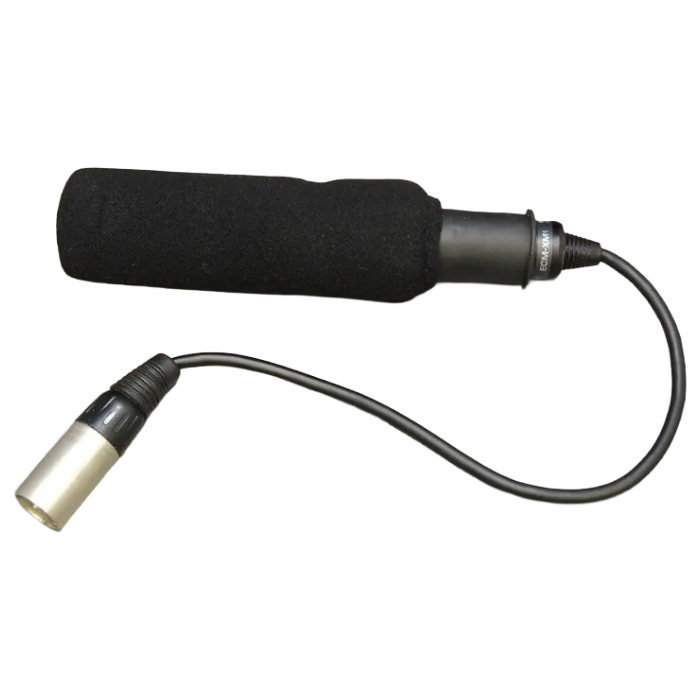

1x SONY ECM-XM1 MINI SHOTGUN MICROPHONE

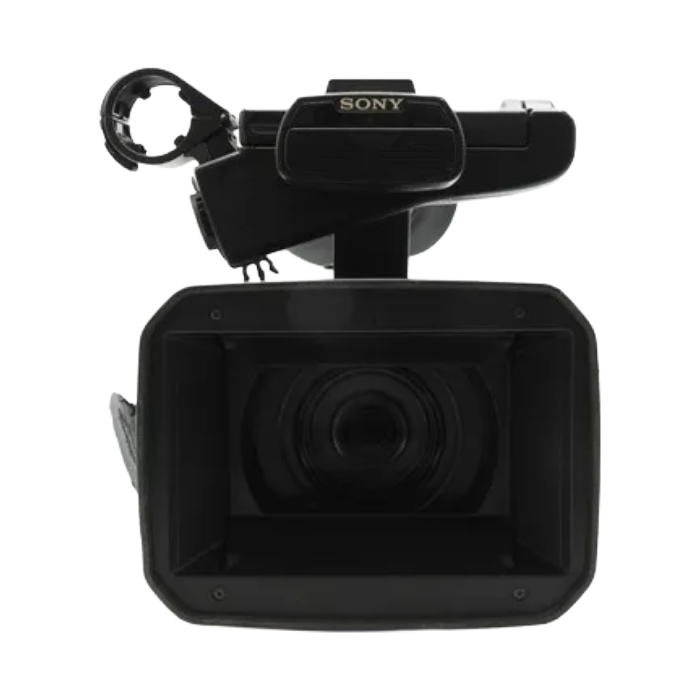

1x LENS HOOD WITH BUILT-IN LENS COVER

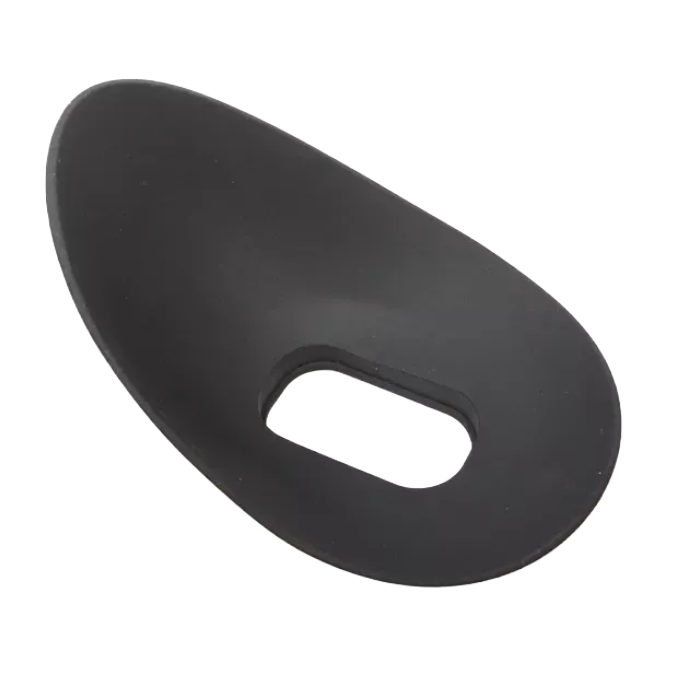

1x SONY PXW-Z100 EYE CUP FOR VIEWFINDER

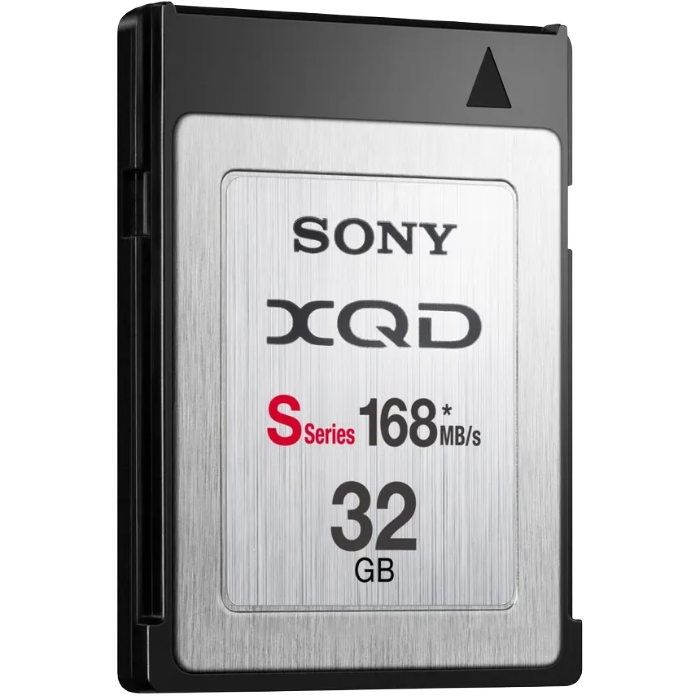

1x SONY QD-S32E 32GB XQD S SERIES MEMORY CARD

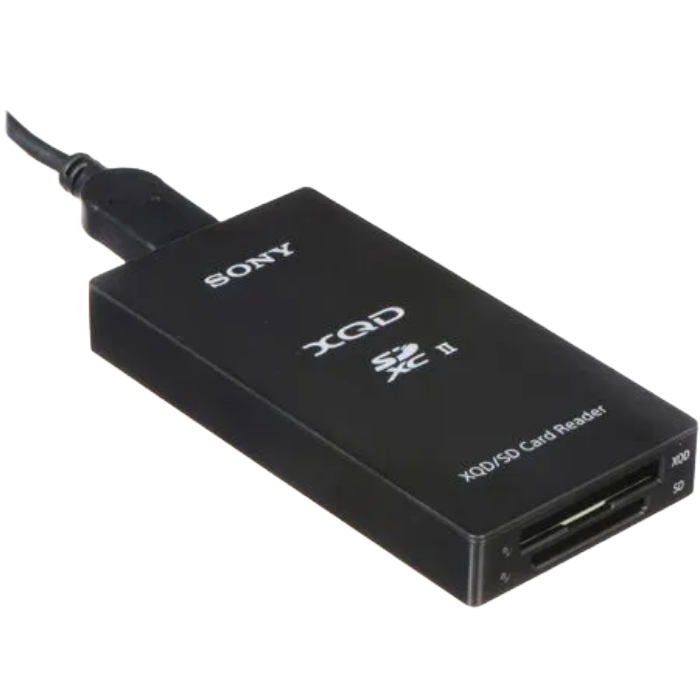

1x SONY MRW-E80 XQD CARD READER

2x 2-PIN AC POWER CABLE

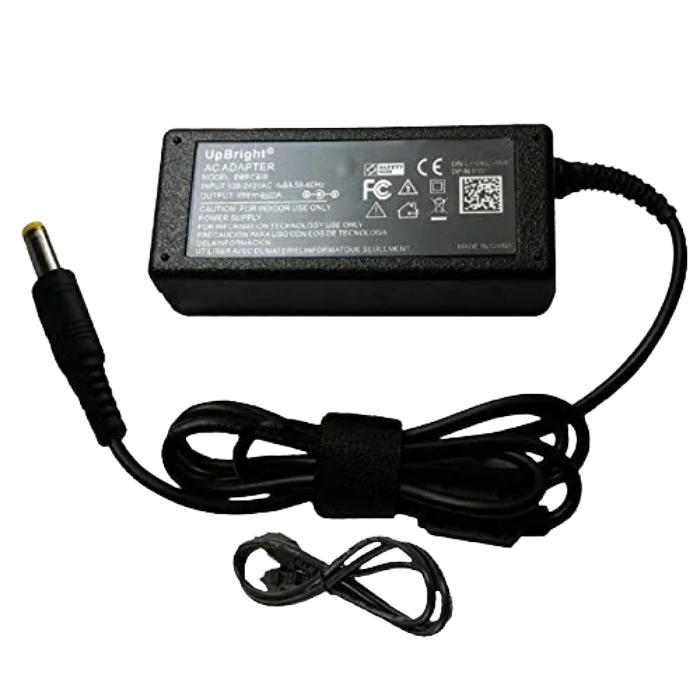

1x SONY AC ADAPTER 12V DC OUTPUT POWER CABLE

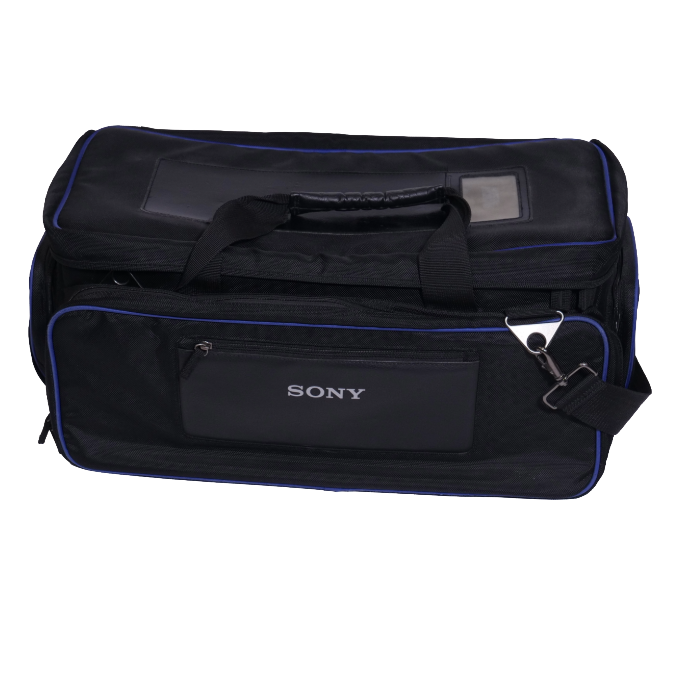

1x SONY PXW-Z100 CAMERA BAG

TUTORIALS

CHECKLIST

When checking out equipment make sure for the following:

  • You have all the equipment listed on the equipment’s kit
  • Keep the equipment in the bags when not in use.
  • Check if the batteries are charged and cards are empty. You can ask the Studio Assistants for any help you might need.
